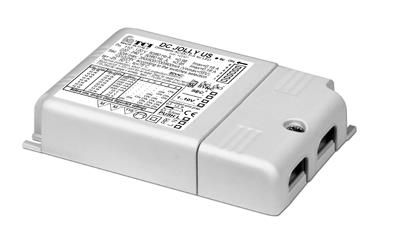

DC JOLLY US PLV - LED Driver, TCI
Product Code: 125425
Delivery terms
2024-06-14 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €30.00 (Orders up to 1000 kgs) | For free |
To €30.00 (Orders up to 3 kgs) | €2.99 |
To €30.00 (Orders up to 1000 kgs) | €3.59 |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €30.00 are delivered free of charge.
€1.99
Supplier product description
Useful information
Supplier parameters
NomNr
125425
Approvals
CE; EAC ; ENEC; KEMAKEUR; RCM; UKCA; UL (class 2)
Case
IP 20 (Independent Use); Square; ZHAGA AS1
Constant current
250 mA; 300 mA; 350 mA; 400 mA; 450 mA; 500 mA; 550 mA; 600 mA; 650 mA; 700 mA; 750 mA; 800 mA; 850 mA; 900 mA
Constant voltage
12 V; 24 V
Cut-out hole diameter
72 mm; 80 mm; 84 mm; 88 mm; 90 mm
Depth
67
Dimming
PUSH Low Voltage (PLV); SYNC/PWM INPUT
Height
21
Others
4/5 kV DM/CM SURGE Input Protection; ACTIVE PFC (pf>0.9); DIMMING: PWM; RIPPLE FREE; SELV <60V; WIDE RANGE INPUT VOLTAGE
Width
103
Brand
TCI
Supplier's product code
125425
Product ID
U-3105317
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
