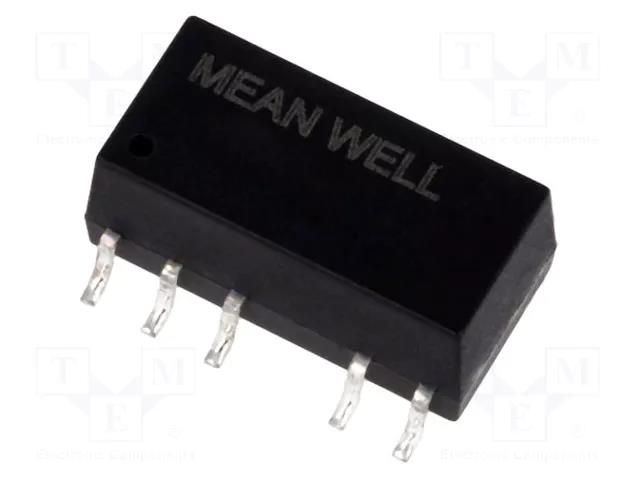

Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 15VDC; Iout: 66.66mA MEAN WELL
Product Code: SFT01L-15
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2026-07-23 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 4 pcs | Supplier Warehouse |
Naujiena! LEMONA electronics paštomatai, veikiantys 24/7
Naujiena! LEMONA electronics paštomatai, veikiantys 24/7Free
Orders are processed on weekdays from 8:00 AM to 5:00 PM. Once your order is ready for pickup, we will notify you via text message and email. You will find the parcel terminal next to the store.
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 € |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39 €
Product description
Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 15VDC; Iout: 66.66mA MEAN WELL
Useful information
Specifications
Supplier product description
Converter: DC/DC; 1W; Uin: 4.5÷5.5VDC; Uout: 15VDC; Iout: 66.66mA
Useful information
Supplier parameters
Product code
SFT01L-15
Body dimensions
15.24x7.5x6.5mm
Efficiency
79%
Input voltage
4.5...5.5V DC
Insulation voltage
3kV DC
Manufacturer
MEAN WELL
Manufacturer series
SFT
Mounting
SMT
Number of outputs
1
Operating temperature
-40...85°C
Output current
66.66mA
Output voltage
15V DC
Power
1W
Protection
short circuit protection SCP
Switching frequency
100kHz
Type of converter
DC/DC
Brand
MEAN WELL
Supplier's product code
SFT01L-15
Product ID
U-323142
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
