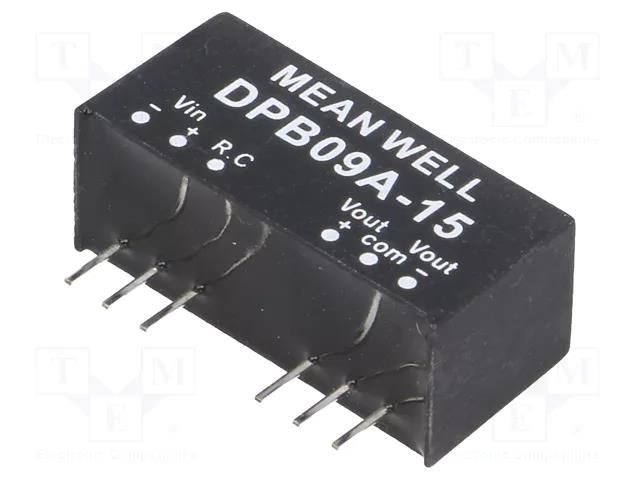

Converter: DC/DC; 9W; Uin: 9÷18VDC; Uout: 15VDC; Uout2: -15VDC; SIP8 MEAN WELL
Product Code: DPB09A-15
The photo is for illustration only. Please refer to the description for exact product specifications.
Delivery terms
2025-07-25 Estimated delivery
Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail
 Not available | Supplier Warehouse |
Home delivery in Lithuania
Home delivery in Lithuania
After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.
Over €70.00 (Orders up to 1000 kgs) | For free |
To €70.00 (Orders up to 3 kgs) | 3,49 |
To €70.00 (Orders up to 1000 kgs) | 3,49 - 4,99 € |
Delivery to a DPD Pickup location
Delivery to a DPD Pickup location
After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.
2,39
Product description
Converter: DC/DC; 9W; Uin: 9÷18VDC; Uout: 15VDC; Uout2: -15VDC; SIP8 MEAN WELL
Useful information
Specifications
Supplier product description
Converter: DC/DC; 9W; Uin: 9÷18VDC; Uout: 15VDC; Uout2: -15VDC; SIP8
Useful information
Supplier parameters
Product code
DPB09A-15
Supplier's product code
DPB09A-15
Product ID
U-166875
Body dimensions
24x9.6x11.2mm
Case
SIP8
Efficiency
88%
Input voltage
9...18V DC
Insulation voltage
1.5kV DC
Manufacturer
MEAN WELL
Manufacturer series
DPB09
Mounting
THT
Number of outputs
2
Operating temperature
-40...90°C
Output current
0...300mA
Output current 2
0...300mA
Output voltage
15V DC
Output voltage 2
-15V DC
Power
9W
Protection
short circuit protection SCP
Switching frequency
400kHz
Type of converter
DC/DC
Brand
MEAN WELL
