Product description

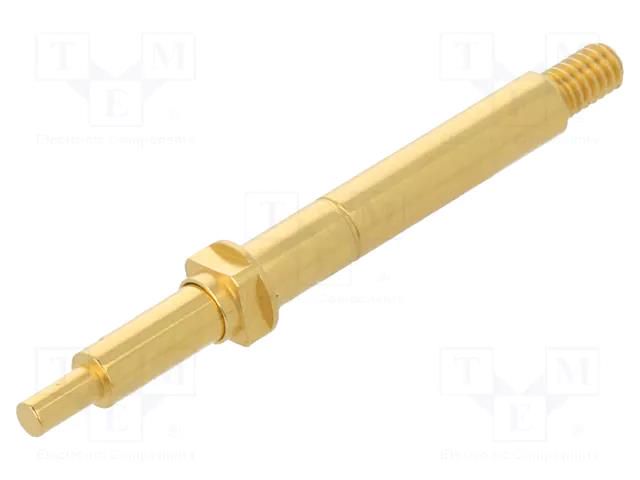

Test needle; Operational spring compression: 4mm; Min.pitch: 4mm TEKON
Useful information
Specifications
SKU
U-354470
Product code
TK36SCR.10140S300A
Supplier product description
Test needle; Operational spring compression: 4mm; Min.pitch: 4mm
Useful information
Supplier parameters
Product code
TK36SCR.10140S300A
Blade tip shape
flat
Contact material
steel
Contact plating
gold-plated
Current rating
5A
Maksimum spring compression
5.3mm
Manufacturer
TEKON
Max. contact resistance
:10mΩ
Minimum pitch
4mm
Mounting
screw-in
Operational spring compression
4mm
Related items
TK36SCR
Tip diameter
1.4mm
Type of test accessories
test needle
Supplier's product code
TK36SCR.10140S300A
Product ID
U-354470
