Product description

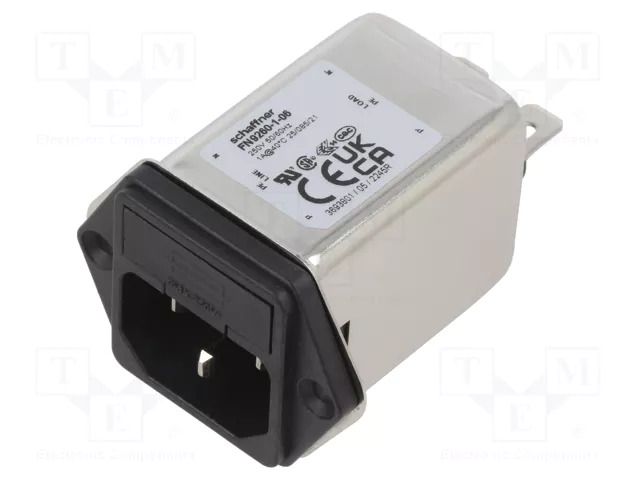

Connector: AC supply; socket; male; Inom: 1A; Ir: 310uA; 250VAC; 1MΩ SCHAFFNER / TE Connectivity
Specifications
SKU
U-2954415
Product code
FN9260-1-06
Supplier product description
Connector: AC supply; socket; male; Inom: 1A; Ir: 310uA; 250VAC; 1MΩ
Supplier parameters
Supplier's product code
FN9260-1-06
Product ID
U-2954415
Capacitance Cy
2.2nF
Capacitance Cx
0.1µF
Caution!
fuses not included
Conform to the norm
CSA Std C22.2 No. 8-13
Connector
socket
Connector variant
C14 (E)
Current rating
1A
Design
fuse x2
Fuse size
5x20mm
Inductance
5.3mH
Kind of connector
male
Leads
connectors
Leads dimensions
6.3x0.8mm
Leakage current
0.31mA
Manufacturer
SCHAFFNER / TE Connectivity
Manufacturer series
FN9260
Mechanical mounting
for panel mounting
Operating temperature
-25...85°C
Rated voltage
250V AC
Resistance
1MΩ
Type of connector
AC supply
Product code
FN9260-1-06
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
