Product description

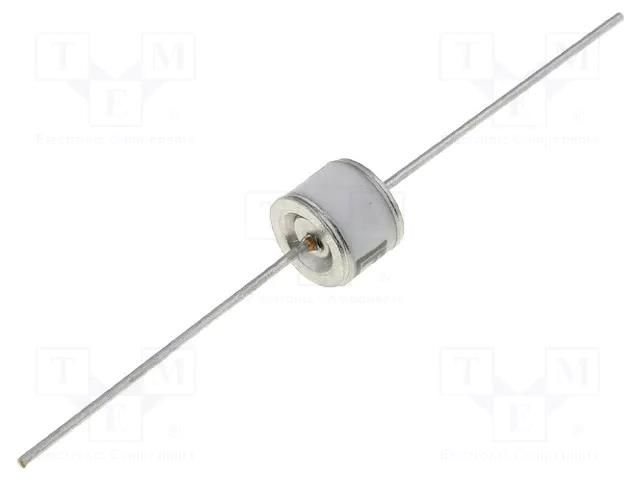

Arrester: surge arrester; THT; Leads: axial; Ubr type: 1kV; 10GΩ LITTELFUSE
Useful information
Specifications
Supplier product description
Arrester: surge arrester; THT; Leads: axial; Ubr type: 1kV; 10GΩ
Useful information
Supplier parameters
Product code
CG2-1000L
Brand
LITTELFUSE
Supplier's product code
CG2-1000L
Product ID
U-146215
Body dimensions
Ø8.1x6mm
Capacitance
1.5pF
Impulse discharge current (8/20µs)
10kA
Impulse discharge current AC 50Hz (1 s 10 times)
10A
Leads
axial
Manufacturer
LITTELFUSE
Manufacturer series
GDT
Max spark-over voltage
1.15kV
Max. overload voltage
1.6kV
Min spark-over voltage
850V
Min. insulation resistance
10GΩ
Mounting
THT
Operational life (10/1000µs, 500A)
400
Surge arresters application
surge supression
Type of surge arrester
surge arrester
Typical spark-over voltage
1kV
