Product description

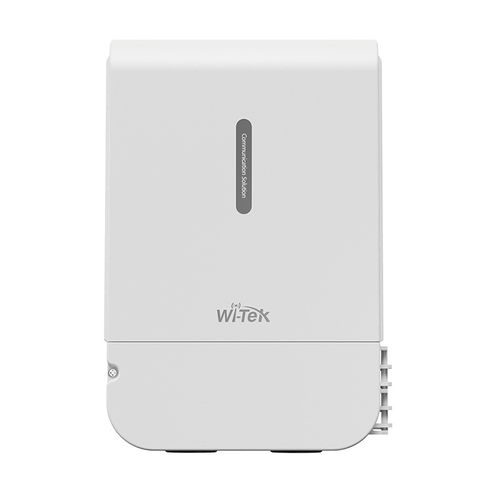

4 port switch Wi-Tek WI-PCES206-O
Specifications
SKU
U-4589776
Product code
SWITCHWIPCES206O
Supplier product description
- Type: Switch
- Model: WI-PCES206-O
- Brand: Wi-Tek
- Ports: 4 PoE (100 Mbps), 2 Uplink (100 Mbps)
- PoE power: 60 W
- Throughput: 1.2 Gbps
- Packet forwarding rate: 0.89 Mpps
- MAC address capacity: 4K
- Long range mode: >250 m (10 Mbps)
- Buffer: 4 Mbit
- Operating temperature: –30°C to +60°C
- General
- ModelWI-PCES206-O
- Hardware VersionV1
- PoE Ports4 x 10/100Mbps RJ45 PoE Ports (Ports 1–4)
- PoE StandardPort 1–2: Hi-PoE 45W, Port 3–4: 802.3af/at 30W
- PoE Pin Assignment1/2(+), 3/6(-)
- Uplink Ports2 x 10/100Mbps Ethernet Ports
- PoE Power Budget60W
- Standards and ProtocolsIEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
- Forwarding ModeStore and Forward
- Switching Capacity1.2Gbps
- Packet Forwarding Rate0.89Mpps
- MAC Address Table8k
- Packet Buffer Memory4Mbit
- Jumbo Frame9216 Byte
- Input Power100~240V AC 50/60Hz
- Power ConsumptionIdle: 2.7W, Full Load: 62.7W
- LED IndicatorsPWR(Orange): On=Normal, Off=Power off/failure; PoE(Orange): On=Enabled, Off=Disabled; Link(Orange): On=Connected, Off=Disconnected, Blinking=Data Transmission
- DIP Switch1. Extend (PoE up to 250m @10Mbps), 2. VLAN (PoE ports to Uplink only), 3. PD Alive (PoE watchdog for auto reboot)
- Reset ButtonHold >5 sec. to restore factory defaults
- Fan QuantityFanless
- Dimensions314 × 210 × 89 mm
- Package Dimensions405 × 253 × 97 mm
- WeightNet: 1.06kg, Package: 1.77kg
- InstallationWall-mounted, Pole-mounted
- Surge ImmunityIEC 61000-4-5: Common mode 4kV, Differential mode 2kV
- ESD ProtectionIEC 61000-4-2: Contact discharge 6kV, Air discharge 8kV
- CertificationCE, FCC, RoHS, UKCA, RCM
- Operating Environment-30℃ to 60℃ (-22℉ to 140℉); 10–90% RH non-condensing
- Storage Environment-40℃ to 70℃ (-40℉ to 158℉); 5–90% RH non-condensing
- Software FeaturesPort Statistics, Cable Diagnostics, Port Mirroring, Port Isolation, Jumbo Frame, MAC Search/List, Port Reboot, Storm Control, Bandwidth Control, VLAN (1–4094), PD Alive, Extend PoE
- Cloud ManagementWi-Tek Cloud & APP management, Remote Access, Intelligent Network Monitoring, Automatic Device Discovery
- Package ContentsSwitch x1, Power Cord x1, Rubber Plug x2, Wall Hanging Sticker x1, Metal Tie x2, Quick Installation Guide x1, Optional: M36 Waterproof Gland x2
