Product description

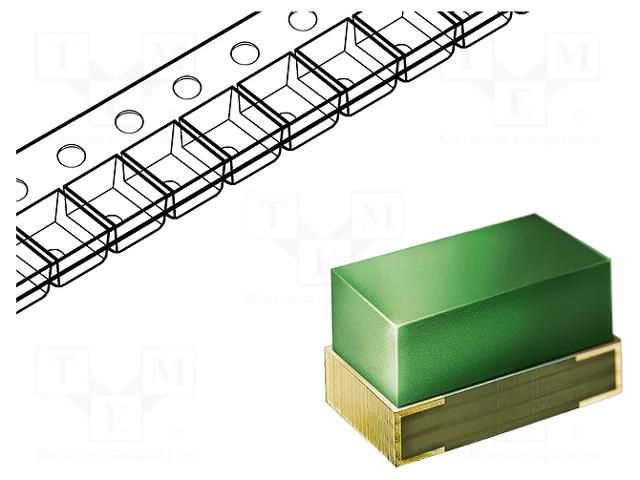

Fuse: fuse; 200mA; 125VAC; 63VDC; ultra rapid; 3.2x1.6mm; SMD; USFF SCHURTER
Specifications
Supplier product description
Fuse: fuse; 200mA; 125VAC; 63VDC; ultra rapid; 3.2x1.6mm; SMD; USFF
Supplier parameters
Product code
3413.0009.22
Supplier's product code
3413.0009.22
Product ID
U-2392557
Breaking capacity
100A
Case
1206
Contact material
copper
Contact plating
gold-plated
Current rating
0.2A
Energy I2t
0.0029A<sup>2</sup>s
Flammability rating
UL94V-0
Fuse characteristics
ultra rapid
Fuse size
3.2x1.6mm
Fuses application
semiconductors protection
Kind of package
tape
Manufacturer
SCHURTER
Manufacturer series
USFF
Max voltage drop
87mV
Mounting
SMD
Operating temperature
-55...90°C
Rated voltage
125V AC
Resistance
365mΩ
Soldering temperature
245°C / 3 s
Type of fuse
fuse
Brand
SCHURTER
