Modem-Router 4 ports Cudy P5 1.0

Product Code: CUDYP5

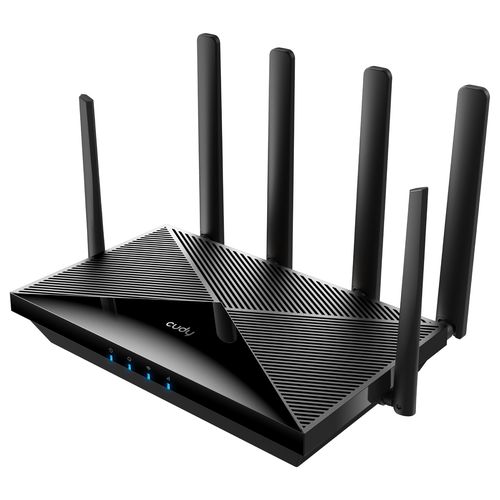

The photo is for illustration only. Please refer to the description for exact product specifications.
More similar products

Price range

AmountPrice with tax (pcs)
1+
283.95283.95
wholesale

Min. qty: 1

Multiplier: 1

Total:

283.95
2025-07-25 Estimated delivery

Delivery terms

2025-07-25 Estimated delivery

Product will be ordered from supplier. If the supplier is unable to deliver by the specified date, we will inform you by e-mail

AvailableAvailable

Supplier Warehouse

home delivery

Home delivery in Lithuania

Home delivery in Lithuania

After handing over the goods to the courier, we will inform you by e-mail. If you are ordering outside of Lithuania please use www.lemona-electronics.eu to order.

Over €70.00

(Orders up to 1000 kgs)

For free

To €70.00

(Orders up to 3 kgs)

3,49

To €70.00

(Orders up to 1000 kgs)

3,49 - 4,99 €

Shipping parcel

Delivery to a DPD Pickup location

Delivery to a DPD Pickup location

After handing over the goods to the courier, we will inform you by e-mail. Orders over €50.00 are delivered free of charge.

2,39

Product description

Modem-Router 4 ports Cudy P5 1.0

Specifications

SKU
U-4589731
Product code
CUDYP5

Supplier product description

  • Type: Modem-router
  • Model: CUDY P5 1.0
  • Mobile network: 5G LTE
  • Download speed: up to 3.4 Gbps
  • SIM slots: 2x nano SIM
  • RAM: DDR 256 MB
  • Wi-Fi speed: 2402 Mbps @ 5 GHz, 574 Mbps @ 2.4 GHz
  • Antenna technology: 2x2 MIMO
  • User capacity: up to 256
  • Wi-Fi standard: Wi-Fi 6
  • External antennas: 4 x SMA antennas
  • LAN ports: 4 x 1000 Mbps RJ45
  • Power supply: 12V 2.5A DC
  • Operating temperature: 0 to +40°C

  • General
  • Model VersionP5 1.0
  • ChipsetIPQ5018
  • CPU Details1.0 GHz Dual-core, ARM Cortex-A53
  • Flash/ROM128 MB (1 Gbit) NAND
  • DDR/RAM256 MB (2 Gbit) DDR3
  • Cellular Standards5G Rel. 16; DL 4G Cat. 19 / UL 4G Cat. 18
  • Cellular Antennas4× Detachable
  • Detachable Cellular Antennas ConnectorSMA Female
  • SIM Options2× Nano SIM Slots
  • Available VersionsEU, US
  • EU Version Suitable RegionEurope, Middle East, Africa, Asia-Pacific (excluding JP, CN), Brazil
  • EU Version Max DL Speed3.4 Gbps (NSA), 2.4 Gbps (SA)
  • EU Version Max UL Speed550 Mbps (NSA), 900 Mbps (SA)
  • EU Version AdvancedDL/UL 4CA, DL 4×4, UL 2×2 MIMO
  • EU Version Cellular Bands5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78; LTE-FDD: B1/3/5/7/8/20/28/32/71; LTE-TDD: B38/40/41/42/43; WCDMA: B1/5/8
  • US Version Suitable RegionGlobal
  • US Version Max DL Speed3.4 Gbps (NSA), 2.4 Gbps (SA)
  • US Version Max UL Speed550 Mbps (NSA), 900 Mbps (SA)
  • US Version AdvancedDL/UL 4CA, DL 4×4, UL 2×2 MIMO
  • US Version Cellular Bands5G Sub 6 GHz: n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79; LTE-FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; LTE-TDD: B34/38/39/40/41/42/43/48; LAA: B46; WCDMA: B1/2/4/5/8/19
  • 5 GHz Wi-Fi Speed2402 Mbps
  • 2.4 GHz Wi-Fi Speed574 Mbps
  • 5 GHz Wi-Fi Streams2T2R (2×2 MIMO)
  • 2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)
  • Wi-Fi Antennas2× Fixed
  • 5 GHz Antenna Gain Max4.79 dBi
  • 2.4 GHz Antenna Gain Max3.59 dBi
  • BeamformingTrue
  • FEM or PA/LNA5 GHz: 2× External; 2.4 GHz: 2× External
  • Range PerformanceMax: 170 m (558 ft)
  • Wall PerformanceTwo wooden walls <10 cm (4") or one concrete wall <20 cm (7")
  • Physical ButtonsWPS Button, Reset Button
  • Gigabit RJ45 Ports4
  • Ethernet NotesOne port supports WAN/LAN configuration; rest are LAN ports
  • LEDPower, Internet, Wi-Fi, Cellular
  • Power InputDC Jack
  • Power MethodsDC
  • DC12V 2.5A
  • Power AdapterInput: 100 ~ 240 V, 50/60 Hz AC; Output: 12V 2.5A DC
  • EMS ProtectionESD: Contact: 4kV; Air: 8kV
  • Operating Temperature0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature-40 ℃ ~ 70 ℃ (-40 ℉ ~158 ℉)
  • Operating Humidity10% ~ 90% non-condensing
  • Storage Humidity5% ~ 90% non-condensing
  • CertificationsFCC, CE
  • Dimension253×152.5×48.2 mm (9.96×6×1.9 inches)
  • Product Weight670 g (23.63 oz.)
  • InstallationDesktop, Wall-mount
  • Package ContentP5, Detachable Antennas, Power Adapter, Ethernet Cable, Installation Guide

Supplier parameters

Product code
CUDYP5
Category
Rout
Brand
Cudy
Supplier's product code
CUDYP5
Product ID
U-4589731
The information that supplier provides may differ from the actual product. If you noticed an error please let us know by email: [email protected].
